Specifications:

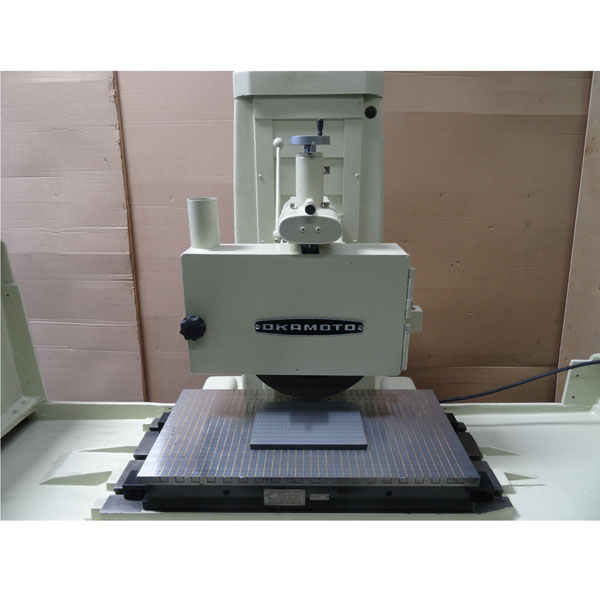

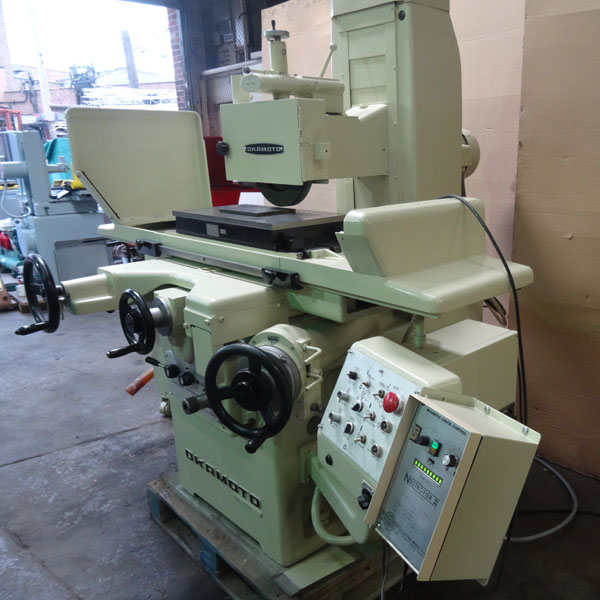

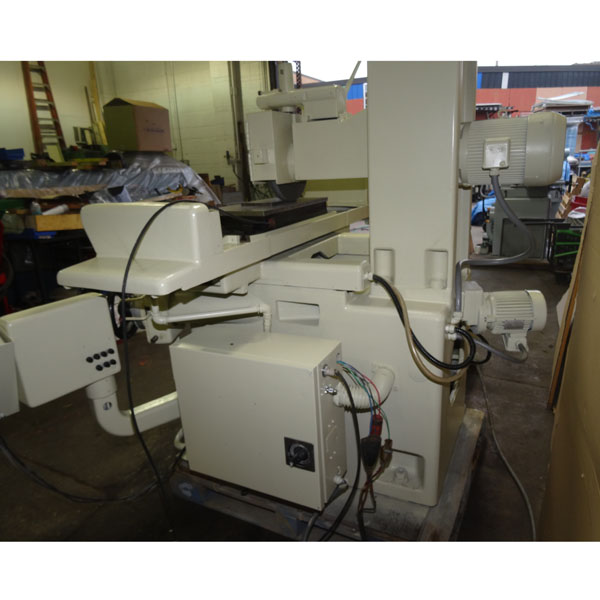

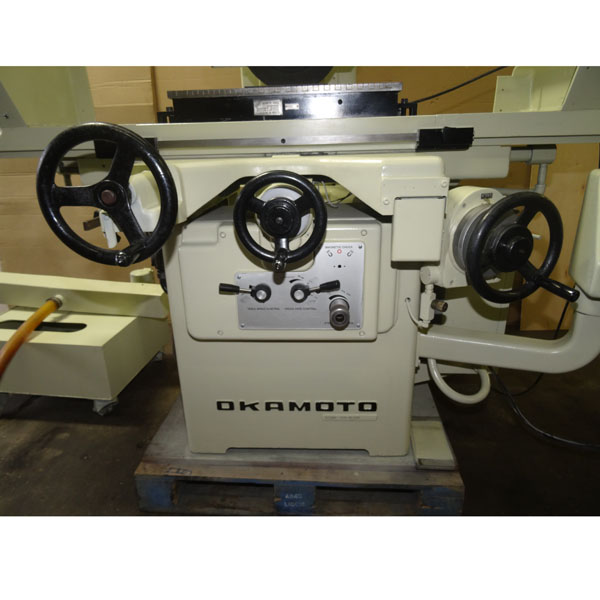

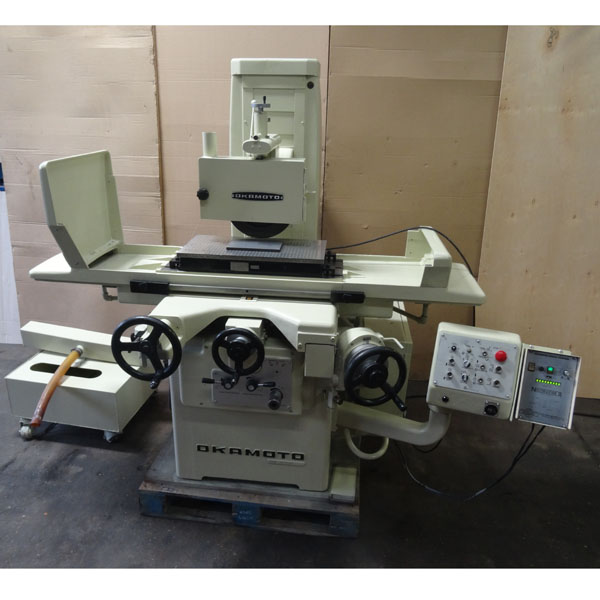

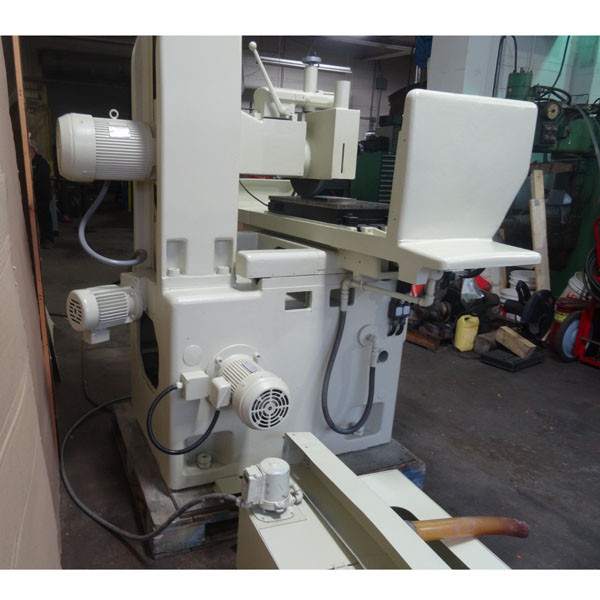

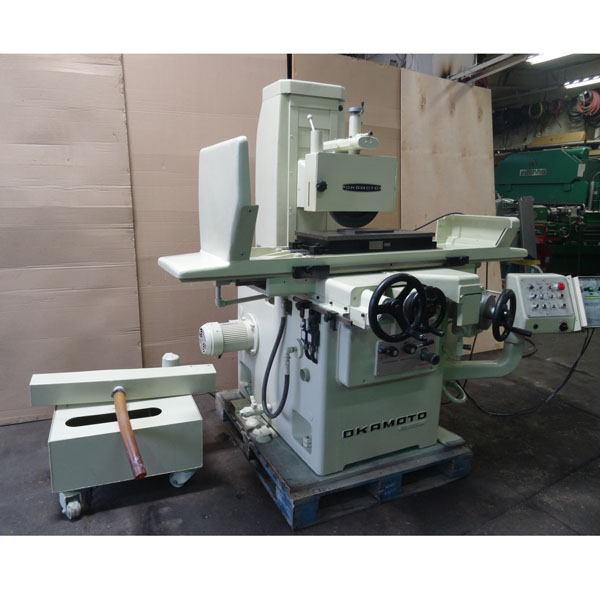

OKAMOTO ACCUGAR-124N PRECISION HYDRAULIC SURFACE GRINDER
Model: 124-N
Serial: 6280
Magnetic Chuck Surface: 12" x 24"
Distance Under 12" Grinding Wheel to Table Top: 13.7"
Table Travel: 29.5" (Longitudinal)
13.6" (Cross)
Foot Pad: 30" x 42"
Table Longitudinal Feeds: 1 – 100 FPM (Hydraulic)
1.85" (Hand)
Table Cross Movement: .2" – .8" (Hydr. Intermited)
4 – 40 IPM (Hydr. Continuous)
.25" (Hand, per Revolution)
.001" (Graduation of Handweel)
Spindle Vertical Movement: .001" – .015" (Auto Feed per Table Stroke)
.05" (Hand Feed per Revolution)
.0001" (Graduation of Handwheel)
Vertical Rapid Feed: 19 IPM
Grinding Wheel Size: 12" O.D. x 1.5" Width x 5" I.D.
Spindle Speed: 1800 RPM
Equipped With:
12" X 24" Kanet Electromagnetic Chuck

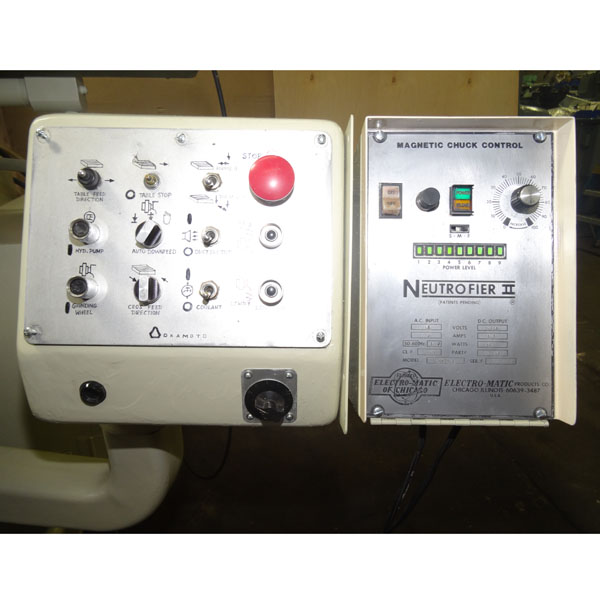

Magnetic Chck Control Neutrofier ||
Auto Incremental Down Feed
Hydraulic Longitudinal & Cross Feed
Power Rapid Wheelhead Elevation
Cross Feed Control; Table Speed Control
Step Feed Control; Automatic Sparkout up to 5 Passes
5 HP AC Main Drive Spindle Motor 3 Phase /60Hz / 230 / 460VAC, 12/6 Amps
2 HP AC Hydraulic Power Unit Motor
Cooling pump unit; 230/ 460 VAC, 0.4 / 0.23 Amps
Electrical Controls
Approximate Overall Dimensions:
W: 80" x D: 74" x H: 81"
Approximate Weight:
5000 Lbs.
Preliminary Specifications Subject to Verification
