Specifications:

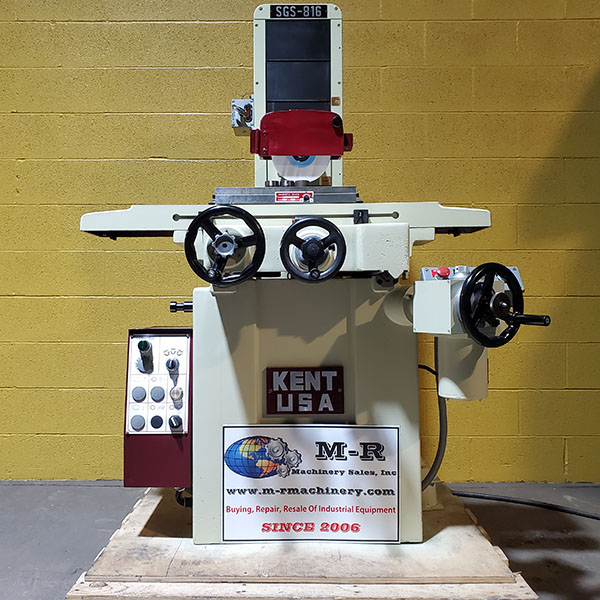

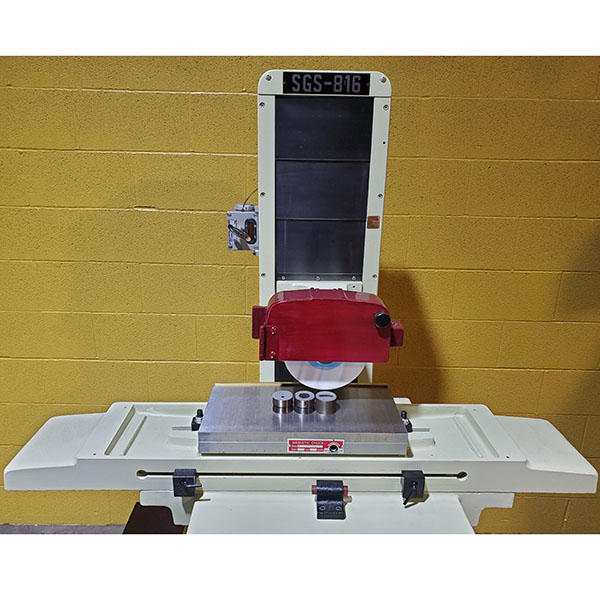

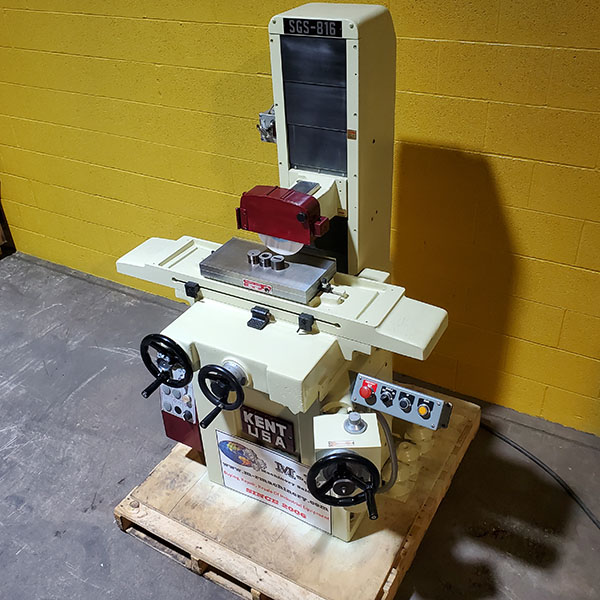

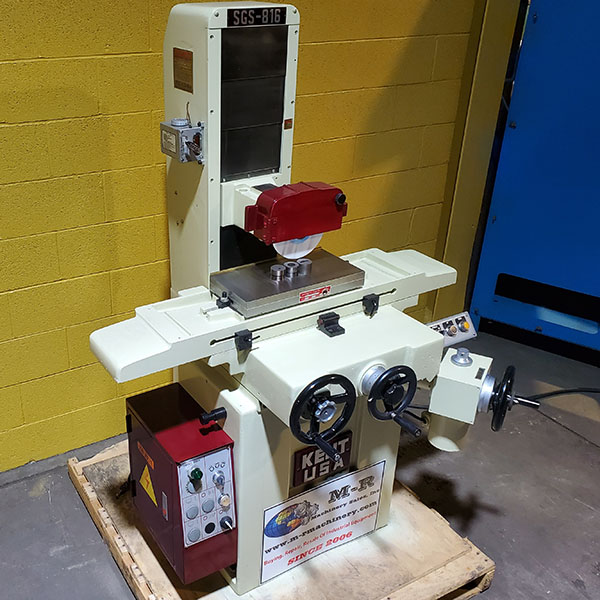

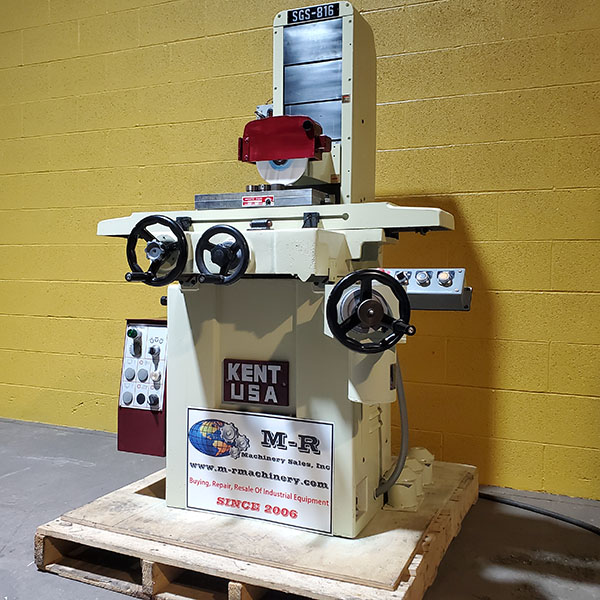

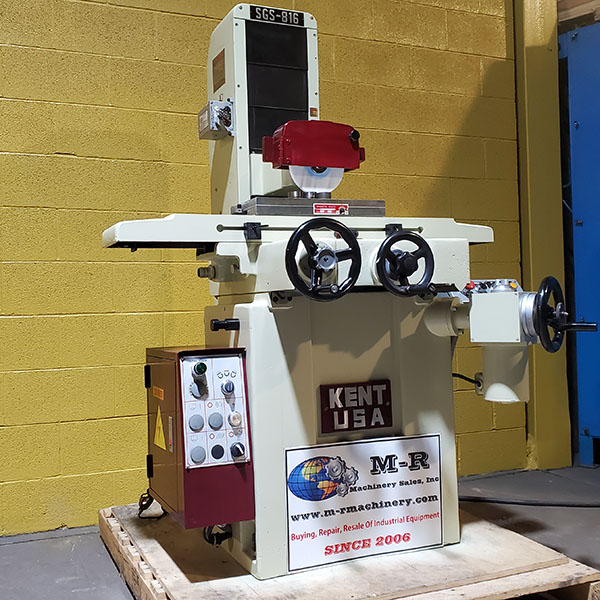

Manual Surface Grinder
Max Grinding Surface (W x L): 8" x 16"
Max Horizontal Travel: 17"
Max Cross Travel: 8"
Distance Between Table Surface and Spindle Center: 18"
Variable Table Speed: (Manual)
Crossing Table Manual
Downfeed Handwheel Per Graduation 0.001"
Per Revolution 0.1"
Cross Feed HandWheel Per Graduation: 0.0005"
Per Revolution 0.2"

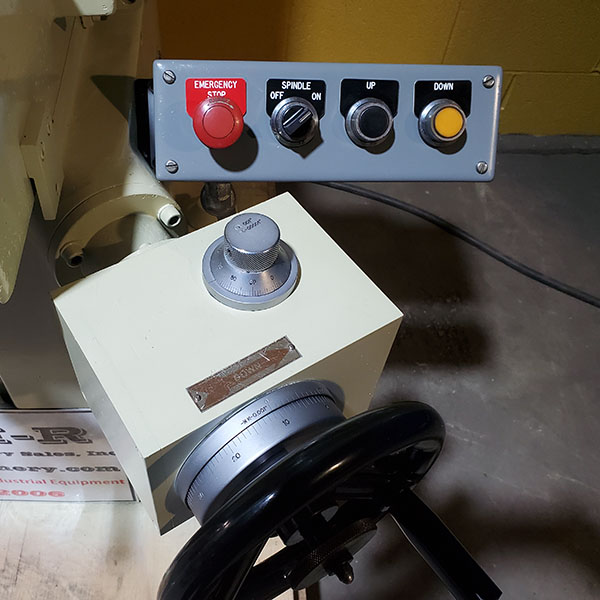

Auto Downfeed Per Graudation: 0.0001"
Per Revolution: 0.01"
Longitudinal Trael Adjusting 2" – 16"
Crossfeed Travel Adjustable From and To: 0" – 8 1/4"
Spindle Motors 2 H.P.
230 / 460 VAC
Current Voltage 230 VAC
Amps:
Approximate Overall Demensions and Weight:
W: 48" x D: 48" x H: 75"
1,750 Lbs
Preliminary Specifications Subject to Verification
