Specifications:
Swing Over bed ——————————–14"
Swing over cross silde————————–8 3/8"
Opening thru spindle ———————–2 1/4″
Distance between cetners ———————-59"
Three jaw chuck ——————————-8"
Opening Thru Chuck —————————2 3/8"
Spindle ———————————–D-1-6 Camlock
9 Speed / 26, 40, 60, 283, 425, 640, 930, 1400 , 2100)
Threads ——————————– Standard/ metric
Leadscrew Diameter ————————– 1 3/8"
Feed rod diameter —————————- 7/8"
Width of Bridge ——————————- 6 3/4"

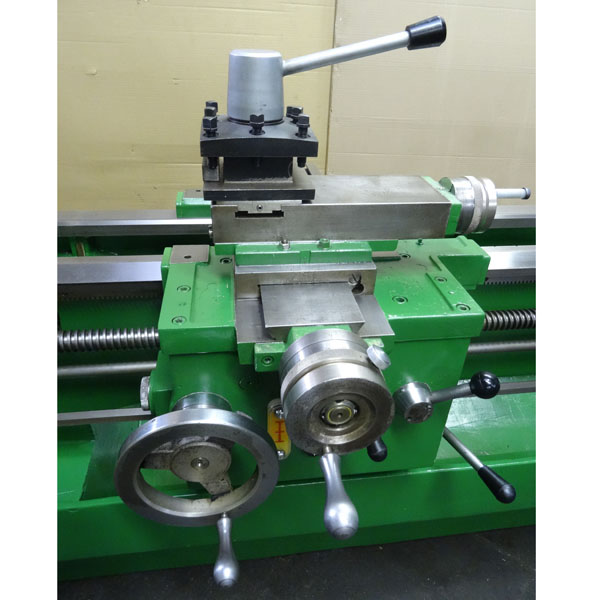

Cross slide travel ——————————– 9 1/2"
Copound rest travel —————————— 5"
Tool block capacity ——————————– 1 3/8"
Tool post 4 way

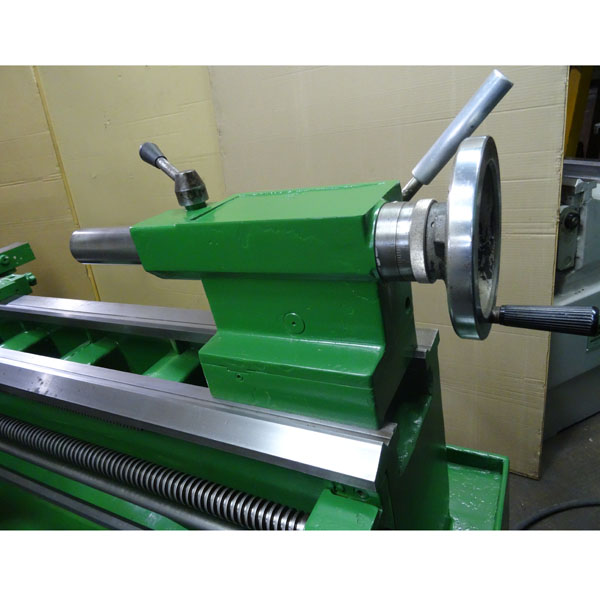

Tailstock spindle diameter —————————- 2 3/16"
Tailstock center ————————————– 3 MT
Tailstock spindle travel ——————————– 6 1/2"
Bed Width ——————————————— 10 5/8"
Ways, induction hardened 2V, 2 Flat
Main motor (3 Phase) 7.5 H.P.
230 VAC Only 23.0 Amps
1155 RPM
Dimensions:
W: 108" x D: 39" x H: 52"
4,200 Lbs
Preliminary Specifications Subject to Verification
